LEFT ADJUSTMENT MOTOR BRACKET, REMOVING AND INSTALLING, "High" A/C SYSTEM: Removing
-- Move the driver seat as far back as possible.
-- Set air distribution via the FRONT (defrost button) for the Front A/C Display Control Head -E87- to the windshield and wait until the air from the instrument panel vents flows toward the windshield.
-- Switch off the ignition.
-- Remove the instrument panel. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
-- Remove the left footwell vent (driver side). Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .
-- Remove the following adjustment motors.
- Remove the Left Side Vent Motor :V299 . Refer to Left Side Vent Motor -V299-, REMOVING AND INSTALLING .
- Remove the Left Temperature Control Door Motor :V158 . Refer to Left Temperature Control Door Motor -V158-, REMOVING AND INSTALLING .
- Remove the Defroster Door Motor :V107 . Refer to Defroster Door Motor -V107-, REMOVING AND INSTALLING .

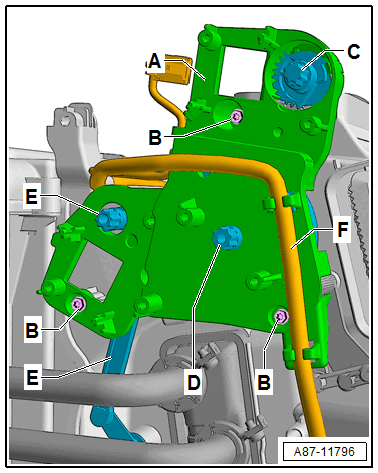

-- Remove the bolts -B-.
-- Detach the wiring harness -F- from the bracket -A-.
-- Hold the curved washer -D- and remove the bracket -A- (with the gear -C-).
