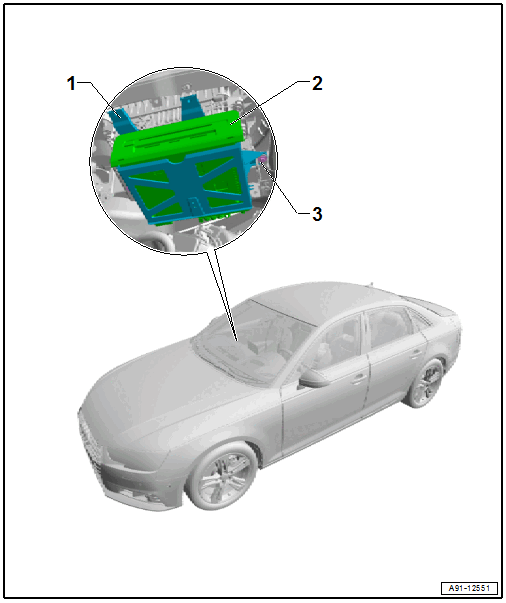

Component Location Overview - Navigation System

Courtesy of AUDI OF AMERICA, LLC

1. Bracket
2. Bolt
   • Quantity: 2
   • 3 Nm
3. Information Electronics Control Module 1 -J794-
   • In the glove compartment
   • the appropriate Wiring Diagram
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
