Vehicle Interior Forced Air Extraction, Removing And Installing: Removing

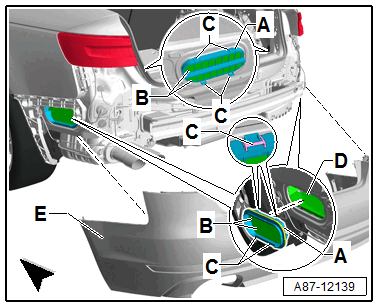

-- Remove the rear bumper cover -E-. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Open the cover in the left and/or right luggage compartment side trim panel.
TIP
- For vehicles without a cover in the luggage compartment side trim panel, the side trim panel (left and/or right) is to be removed (so that the tabs -C- from the vent frame -A- can be loosened to remove) if the forced air extraction vent frame -A- is going to be reused after removing. Luggage compartment side trim panel, removing. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL .
- If the removed vent frame is not going to be reused, loosen the vent frame -A- from the outside from the opening in the body -D- (the vent frame will be destroyed at the same time).
A5 Coupe and Sportback
-- Remove and install the side bumper cover mount. Refer to Rear Bumper .
Continuation for All Vehicles
-- Release the retainers -C- and push the forced air extraction ventilation vent frame -A- outward from the body opening -D-.
