Overview - Led Headlamp Low, From Product Improvement

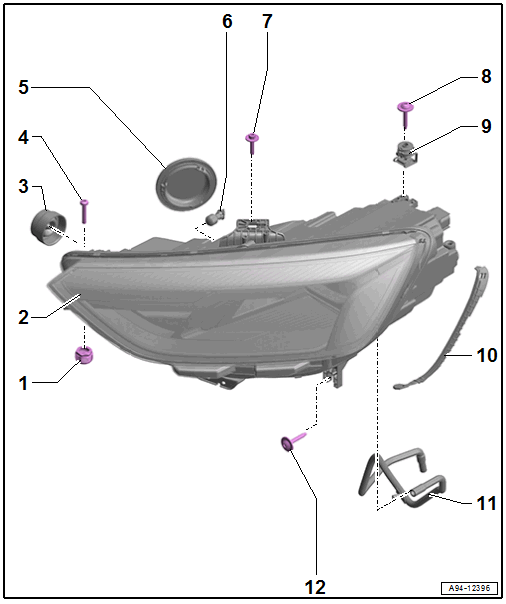

Fig 1: Exploded View Of Led Headlamp (Low)

Courtesy of AUDI OF AMERICA, LLC

1. Adjusting Nut
   • For the headlamp height adjustment
2. Headlamps
   • Replace the headlamp if one of the components is faulty
   • Individual components cannot be replaced separately.
   • Removing and Installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
     • Left Front Headlamp -MX1-
     • Right Front Headlamp -MX2-
3. Filter Membrane
   • Removing and Installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
4. Screw
   • 6 Nm
5. Housing Cover
6. Front Turn Signal Bulb
   • Bulb, Replacing. Refer to LEFT AND RIGHT FRONT TURN SIGNAL BULB -M5- / -M7-, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
     • Left Front Turn Signal Bulb -M5-
     • Right Front Turn Signal Bulb -M7-
   • 12 V, 24 W
7. Screw
   • 6 Nm
8. Screw
   • 6 Nm
9. Adjuster
   • For adjusting the headlamp housing to the body contour
10. Sealing Frame
    • Removing and Installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
11. Breather Hose
    • For headlamp
12. Screw
    • 6 Nm
