Overview - Led Headlamp High And Matrix, From Product Improvement

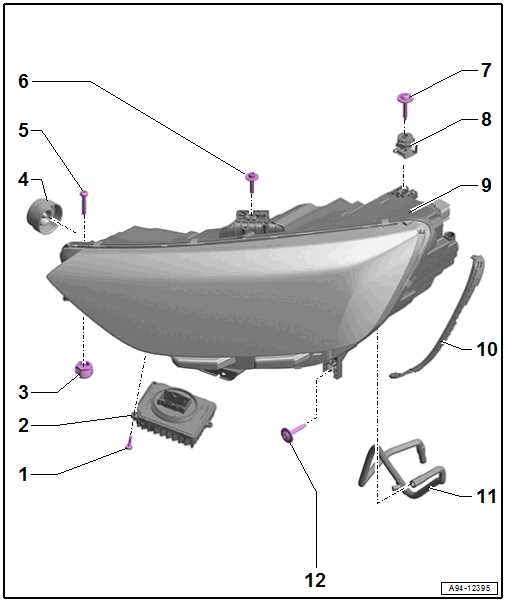

Fig 1: Exploded View Of Led Headlamp (High)

Courtesy of AUDI OF AMERICA, LLC

1. Screw
   • 1.5 Nm
   • Quantity: 4
2. LED Headlamp Power Output Module 1
   • Left LED Headlamp Power Output Module 1 -A31-
   • Right LED Headlamp Power Output Module 1 -A27-
   • Removing and Installing. Refer to RIGHT AND LEFT LED HEADLAMP POWER OUTPUT Module 1 -A27- / -A31-, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
3. Adjusting Nut
   • For the headlamp height adjustment
4. Filter Membrane
   • Removing and Installing. Refer to FILTER MEMBRANE, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
5. Screw
   • 6 Nm
6. Screw
   • 6 Nm
7. Screw
   • 6 Nm
8. Adjuster
   • For adjusting the headlamp housing to the body contour
9. Headlamps
   • Left Front Headlamp -MX1-
   • Right Front Headlamp -MX2-
   • Individual components cannot be replaced separately.
   • Replace the headlamp if one of the components is faulty
   • Removing and Installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
10. Sealing Frame
    • Removing and Installing. Refer to SEALING FRAME, REMOVING AND INSTALLING .
11. Breather Hose
    • For headlamp
12. Screw
    • 6 Nm
