Body Tail Lamp, Aligning With Body Contour

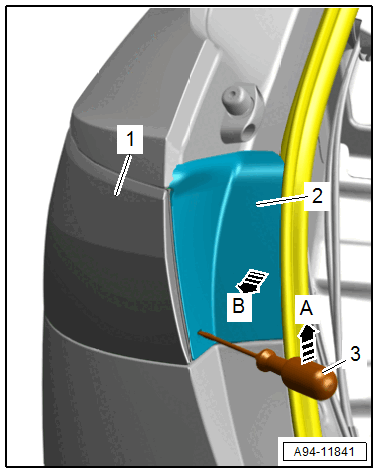

Sedan from Product Improvement:
-- Insert a screwdriver -3- into the opening and slide the cover -2- approximately 8 mm upward in the direction of -arrow A-.
-- Remove the cover from the tail lamp -1- in direction of -arrow B-.

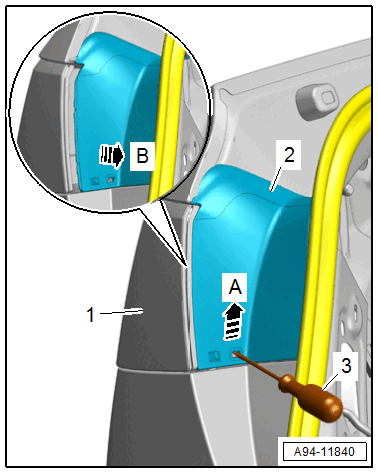

Avant before Product Improvement:
-- Insert the screwdriver -3- into the opening and release the lower catch in the direction of -arrow A-.
-- Grip between the cover -2- and the tail lamp -1- and release the remaining catches.
-- Remove the cover from the tail lamp in the direction of -arrow B- as shown.
TIP:
The cover must be removed very carefully so that the guide and the hooks do not get damaged.

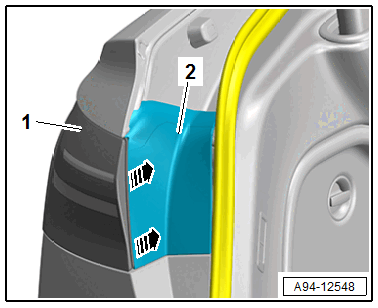

All Vehicles from Product Improvement:
-- To release the catches on the cover -2-, push the cover by hand on the edge forward in direction of -arrows-.
-- Remove the cover from the tail lamp -1-.

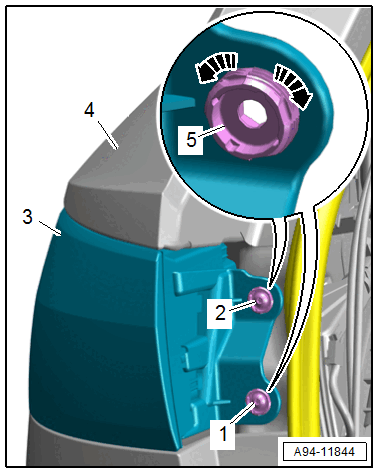

Adjustment in Direction of Travel
-- Remove the bolts -1 and 2-.
-- Turn the adjusting nuts -5- gradually in and out in the direction of -arrows-.
- The tail lamp -3- must be flush with the body contour -4-
