Overview - High-Mounted Brake Lamp

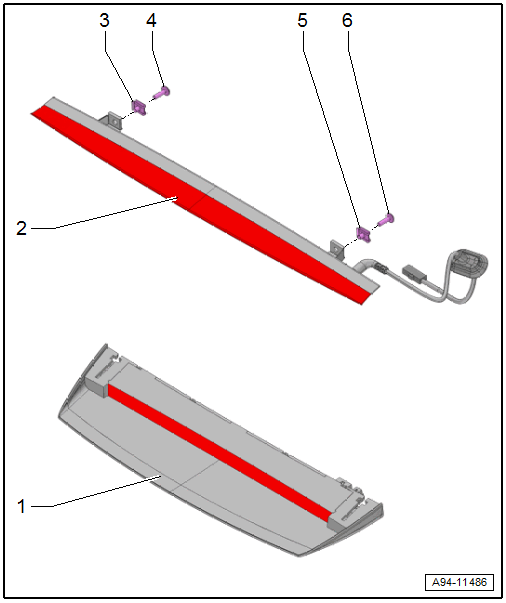

Fig 1: Exploded View Of High-Mounted Brake Lamp

Courtesy of AUDI OF AMERICA, LLC

High-Mounted Brake Lamp, Sedan
- High-Mounted Brake Lamp Bulb -M25-
- Removing and installing. Refer to High-Mounted Brake Lamp Bulb -M25-, REMOVING AND INSTALLING, SEDAN .
High-Mounted Brake Lamp, Avant
- High-Mounted Brake Lamp Bulb -M25-
- Removing and installing. Refer to High-Mounted Brake Lamp Bulb -M25-, REMOVING AND INSTALLING, AVANT .
Spring Nut
Bolt
- 2.5 Nm
Spring Nut
Bolt
- 2.5 Nm
