High-Mounted Brake Lamp Bulb -M25-, REMOVING AND INSTALLING, SEDAN: Removing

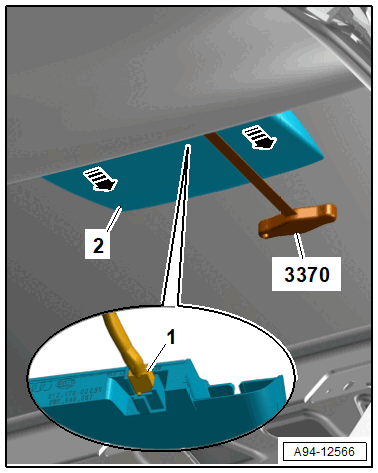

-- Guide the :3370  as shown between the headliner and the high-mounted brake lamp -2-.

GWWA94-12566Courtesy of AUDI OF AMERICA, LLC

-- Pull the left and right high-mounted brake lamps evenly in the direction of travel toward the rear in the direction of -arrows-.

-- Disconnect the connector -1-.
