High-Mounted Brake Lamp Bulb -M25-, REMOVING AND INSTALLING, AVANT: Removing

-- Remove the spoiler. Refer to SPOILER, REMOVING AND INSTALLING .

-- Remove the bolts -1 and 5-.

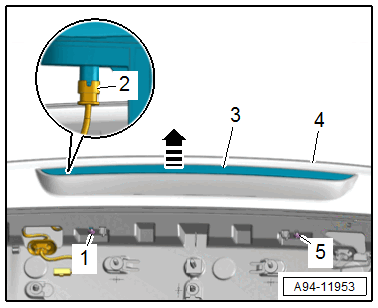

GWWA94-11953Courtesy of AUDI OF AMERICA, LLC

-- Remove the high-mounted brake lamp -3- slightly out of the spoiler -4- in the direction of -arrow-.

-- Disconnect the connector -2-.

-- Remove the high-mounted brake lamp.
