Component Location Overview - Front Keyless Access Authorization System

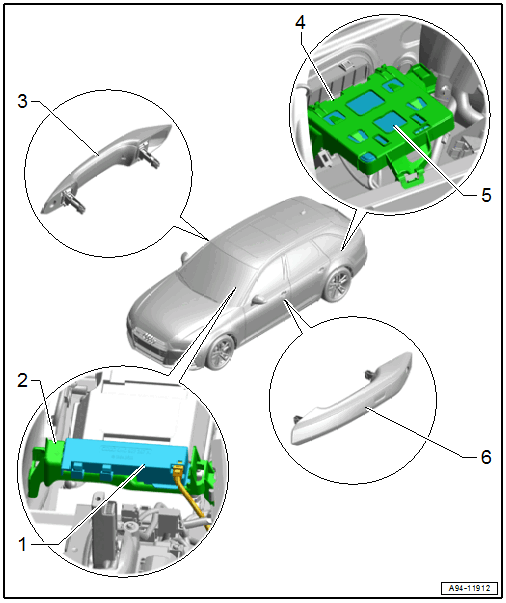

Fig 1: Component Location Front Keyless Access Authorization System

Courtesy of AUDI OF AMERICA, LLC

1. Access/Start System Antenna 1 in Vehicle Interior -R138-
   • Removing and installing. Refer to Access/Start System Antenna 1 in Vehicle Interior -R138-, REMOVING AND INSTALLING .
2. Bracket
   • For Access/Start System Antenna 1 in Vehicle Interior -R138-
3. Front Passenger Side Exterior Door Handle
   • With Right Front Exterior Door Handle Touch Sensor -G606-
   • Overview. Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM .
4. Bracket
   • For the comfort system central control Module
5. Comfort System Central Control Module -J393-
   • Removing and installing. Refer to COMFORT SYSTEM CENTRAL CONTROL Module -J393-, REMOVING AND INSTALLING .
6. Driver Side Exterior Door Handle
   • With Left Front Exterior Door Handle Touch Sensor -G605-
   • Overview. Refer to OVERVIEW - EXTERIOR DOOR HANDLE FOR KEYLESS ACCESS AUTHORIZATION SYSTEM .
