Overview - Front Level Control System Sensor

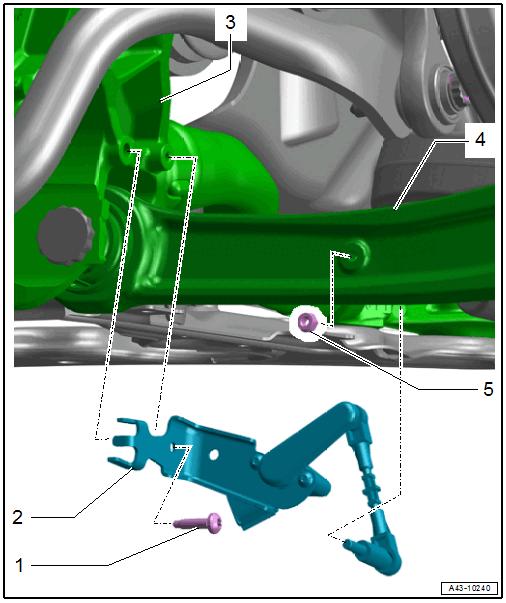

Fig 1: Overview Front Level Control System Sensor

GWWA43-10240

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 9 Nm
Front Level Control System Sensor
- Left Front Level Control System Sensor -G78-
- Right Front Level Control System Sensor -G289-
- With coupling rod and retaining plate
- Removing and installing. Refer to LEFT/RIGHT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- / -G289-, REMOVING AND INSTALLING .
- Installation position: sensor coupling rod points outward
Subframe
Control Arm
Nut
- 9 Nm
- Always replace after removing
- Self-locking
