Left/Right Rear Level Control System Sensor -G76- / -G77-, Removing And Installing: Removing

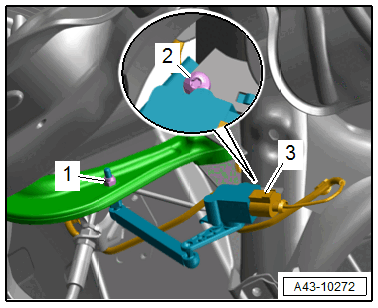

-- Disconnect the connector -3-.

GWWA43-10272Courtesy of AUDI OF AMERICA, LLC

-- Remove the coupling rod nut -1-.

-- Remove the bolt -2- and remove the level control system sensor.
