Component Location Overview - Dynamic Ride Control (DRC)

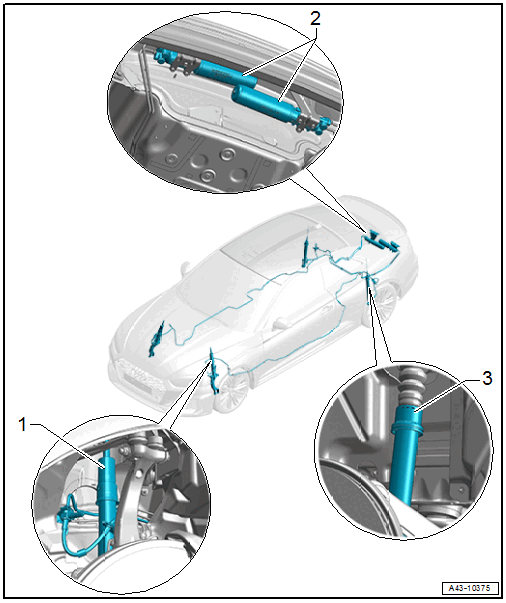

Fig 1: Overview - Dynamic Ride Control (DRC)

Courtesy of AUDI OF AMERICA, LLC

1. Front Suspension Strut
   • Overview. Refer to OVERVIEW - FRONT SUSPENSION STRUT .
2. Central Valves
   • Overview. Refer to OVERVIEW - CENTRAL VALVE .
3. Rear Shock Absorber
   • Overview. Refer to OVERVIEW - REAR SUSPENSION STRUT .
