Overview - Central Valve

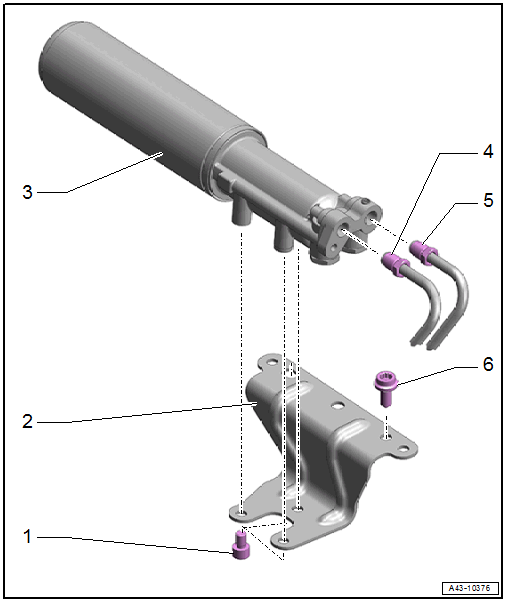

Fig 1: Exploded View Of Central Valve
GWWA43-10376Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 20 Nm
  2. Bracket
  3. Central Valve
  4. DRC Line to Rear Shock Absorber
    • 14 Nm
    • Color code
      • Left = green
      • Right = blue
  5. DRC Line to Front Shock Absorber
    • 14 Nm
    • Color code
      • Left = yellow
      • Right = white
  6. Bolt
    • 20 Nm
