Overview - Front Suspension Strut

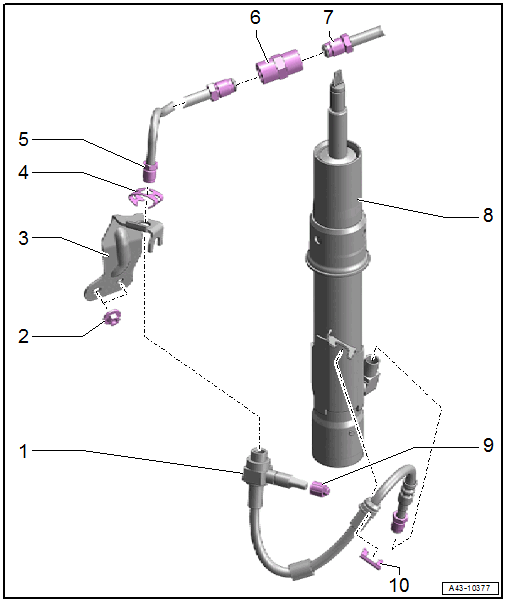

Fig 1: Exploded View Of Front Suspension Strut

Courtesy of AUDI OF AMERICA, LLC

Hose/Line Assembly
- Union bolt, 14 Nm
- With extract/fill valve
Nut
- 9 Nm
Bracket
Spring
- Replace if damaged
Hydraulic Line
- Union bolt, 14 Nm
Connecting Piece
Hydraulic Line
- Union bolt, 14 Nm
DRC Shock Absorber
- Removing and Installing. Refer to SUSPENSION STRUT, REMOVING AND INSTALLING .
Protective Dust Cap
- 1.5 Nm
Spring
- Replace if damaged
