Upper Control Arm Bearing, Replacing: Procedure

The upper control arm is removed. Refer to UPPER CONTROL ARM, REMOVING AND INSTALLING

-- Mark the press-in depth of the bonded rubber bushing, for example using a waterproof felt-tip pen.

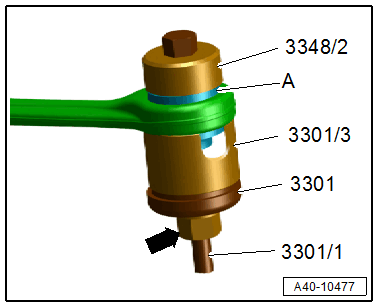

Bonded Rubber Bushing, Pulling Out

Fig 1: Bonded Rubber Bushing, Pulling Out

Courtesy of AUDI OF AMERICA, LLC

-- Clamp the control arm in a vise with protective covers.

-- Arrange the special tools as shown.

-- Remove the bonded rubber bushing -A- by turning the nut -arrow-.

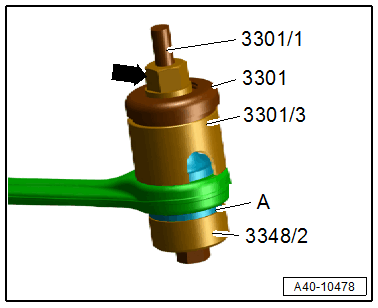

Bonded Rubber Bushing, Installing

Fig 2: Bonded Rubber Bushing, Installing

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Do not use lubricant!

-- Transfer the mark for the press-in depth from the old bonded rubber bushing to the new one.

-- Arrange the special tools as shown.

-- Install the bonded rubber bushing -A- by turning the nut -arrow-, while paying attention to the press-in depth mark made previously.

-- Check the press-in depth for the bonded rubber bushing -1- inside the control arm -2-.

Fig 3: Checking Press-In Depth Of Bonded Rubber Bushing

Courtesy of AUDI OF AMERICA, LLC

-- When the dimensions are different, tighten the bonded rubber bushings.
