Overview - Rear Parking Aid

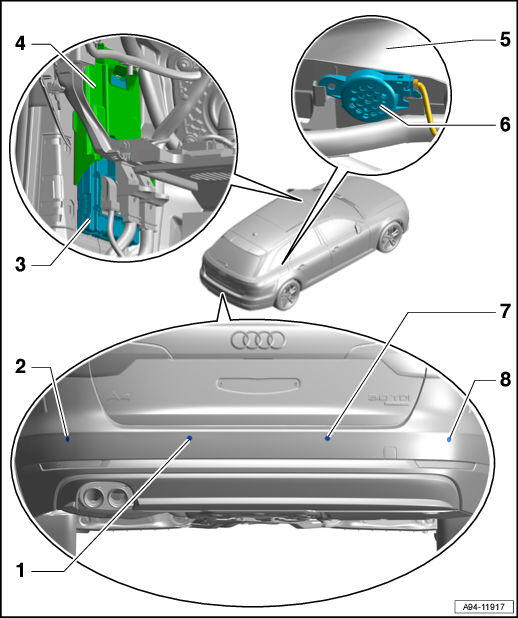

Fig 1: Rear Parking Aid Overview

Courtesy of AUDI OF AMERICA, LLC

Left Rear Center Parking Aid Sensor -G204-
- Removing and Installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
Left Rear Parking Aid Sensor -G203-
- Removing and Installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - CONTROL MODULES .
Bracket
- For vehicle electrical system control Module
Belt Guide
- Right rear parking aid sensor
Rear Parking Aid Warning Buzzer -H15-
- Discontinued as of MY 2019 and the Front Parking Aid Warning Buzzer -H22- is exclusively installed on all parking aid versions.
- Removing and Installing. Refer to Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING .
Right Rear Center Parking Aid Sensor -G205-
- Removing and Installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
Right Rear Parking Aid Sensor -G206-
- Removing and Installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
