Bonded Rubber Bushing, Pressing Out

Courtesy of AUDI OF AMERICA, LLC

• The guide link is removed. Refer to GUIDE LINK, REMOVING AND INSTALLING

-- Mark the press-in depth -arrow- on the bonded rubber bushing -4-, for example using a waterproof felt-tip pen.

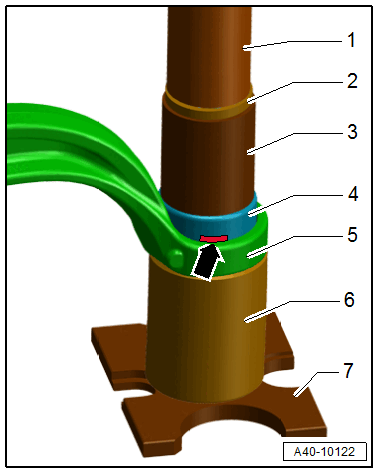

-- Arrange the special tools as shown.

1. :VAS6654  Punch
2. :VW412
3. :VW463/2
4. Bonded Rubber Bushing
5. Guide Link
6. :3144
7. :VW402

-- Remove the bonded rubber bushing from the guide link.
