Overview - Wheel Bearing: Notes

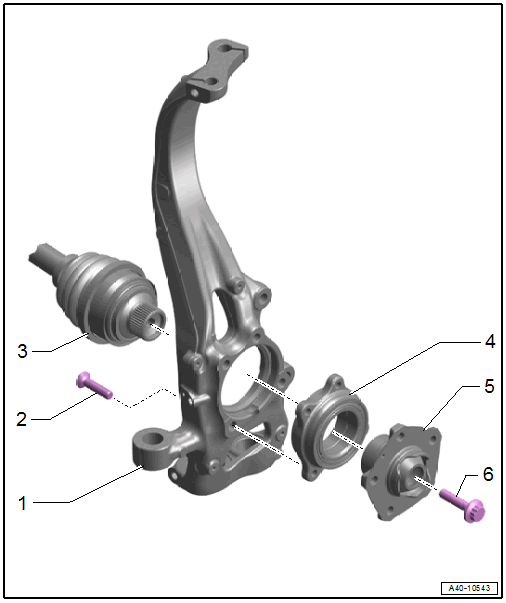

Fig 1: Exploded View Of Wheel Bearing

Courtesy of AUDI OF AMERICA, LLC

Wheel Bearing Housing
- Removing and installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
Bolt
- 80 Nm + 90°
- Always replace after removing
Drive Axle
Wheel Bearing
- Wheel bearing unit, removing and installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
- Removing and installing. Refer to WHEEL BEARING UNIT, SERVICING .
- Handling. Refer to Figure
Wheel Hub
- The lateral run-out on the outer diameter of the wheel hub when installed can be a maximum of 0.02 mm.
- Measure the lateral run-out with the Dial Indicator - 0-10mm:VAS6079 and Dial Indicator Bracket:VAS6079/1
- Removing and installing. Refer to WHEEL BEARING UNIT, SERVICING .
Bolt
- Always replace after removing
- Before installing, clean the threads in the CV joint with a thread tap.
- Drive axle threaded connection, loosening and tightening. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
