Triple Roller Joint Allocation

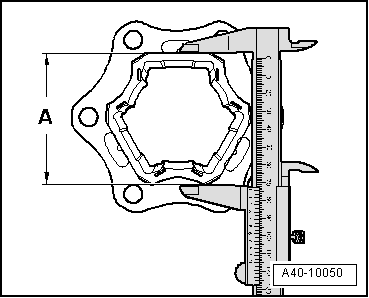

Fig 1: Determine Dimension A

GWWA40-10050

Courtesy of AUDI OF AMERICA, LLC

-- Determine the dimension -A- with the clamps open and the CV boot pushed back.

Dimension -A- = approximately 74 mm: drive axle with triple roller joint AAR 2600 i

-- Drive axle with Triple Roller Joint AAR 2600 i, disassembling and assembling. Refer to DRIVE AXLE, DISASSEMBLING AND ASSEMBLING, TRIPLE ROLLER JOINT AAR 2600 I AND AAR 3300 I .

Dimension -A- = approximately 77 mm: drive axle with triple roller joint AAR 3300 i

-- Drive axle with Triple Roller Joint AAR 3300 i, disassembling and assembling. Refer to DRIVE AXLE, DISASSEMBLING AND ASSEMBLING, TRIPLE ROLLER JOINT AAR 2600 I AND AAR 3300 I .

Dimension -A- = approximately 82 mm: drive axle with triple roller joint AAR 3700 i

-- Drive axle with Triple Roller Joint AAR 3700 i, disassembling and assembling. Refer to DRIVE AXLE, DISASSEMBLING AND ASSEMBLING, TRIPLE ROLLER JOINT AAR 3700I .
