SUBFRAME Front Hydraulic Bonded Rubber Bushing, Replacing: Installing

Courtesy of AUDI OF AMERICA, LLC

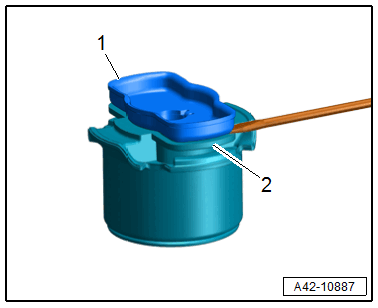

-- Pry out the anti-twist mechanism -1- using a screwdriver from the bonded rubber bushing alternating from side to side.

-- Version with plastic insert: remove the plastic insert -2- from the bonded rubber bushing.

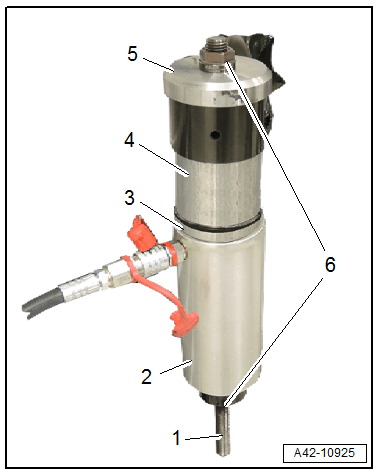

-- Arrange the special tools as shown.

Courtesy of AUDI OF AMERICA, LLC

:T10205/8-1
:VAS6178
:T40328/10

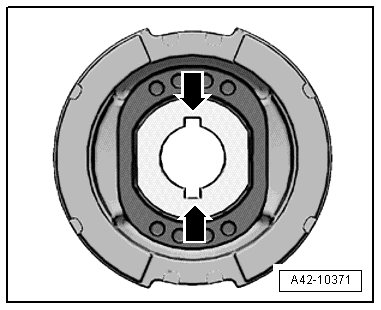

Bonded rubber bushing. Installation position. Refer to Figure.
:T40373/5
:T10205/8-2

-- Align the bonded rubber bushing with the markings made previously and push it in until the collar comes in contact with the bushing in the subframe without any gaps.

NOTE:

If necessary release the tension and press in using the :VAS6179 .

To prevent damage to the outer race, while pushing in, pay attention that the bonded rubber bushing is not tilted.

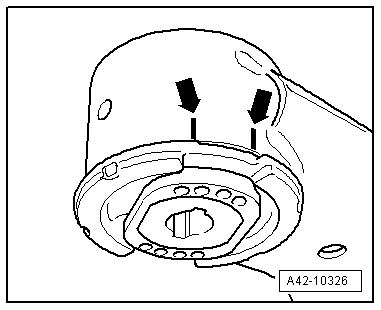

The ends of the rubber bead on the bonded rubber bushing must align with the markings -arrows- on the subframe.

Fig 1: Ends Of Rubber Bead On Bonded Rubber Bushing Must Align With Markings
Courtesy of AUDI OF AMERICA, LLC

NOTE:

Correct any paint damage on subframe with corrosion protection, primer and black top coat.

-- Install the plastic insert and the anti-twist mechanism on the hydraulic bonded rubber bushing.

Further installation is the reverse order of removal.
