Wheel - 7.5 J X 16
NOTE:
The part number and illustration of the following wheels are examples. Refer to the "Parts Information" for assistance to order the correct wheels.
Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Information".
| Nm | Wheel Bolts | Hole Circle in mm | Wheel Hub in mm |
|---|---|---|---|
| 120 | 5 | 112 | 66.5 |

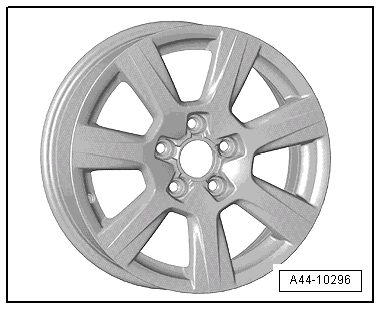

| 8K0 601 025 A | |
| Aluminum wheel, PR number | C3U |
| Dimension: | 7.5 J x 16 H2 |
| Offset in mm: | 45 |
| Wheel load in kg: | 650 |

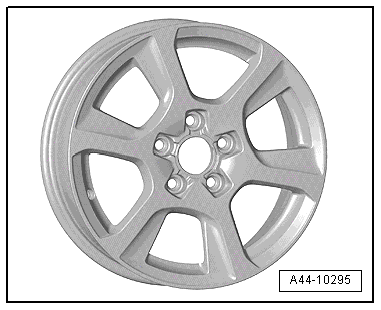

Fig 2: Aluminum Rims 8K0 601 025 F, 8K0 601 025 AT >> 12/10/2012 →→ 8K0 601 025 CG & 8K0 601 025 BA>> 12/10/2012 →→ 8K0 601 025 CL -- Wheels
Courtesy of AUDI OF AMERICA, LLC| 8K0 601 025 F | |
| Aluminum wheel, PR number | CD6 |
| Dimension: | 7.5 J x 16 H2 |
| Offset in mm: | 45 |
| Wheel load in kg: | 650 |
| 8K0 601 025 AT >> 12/10/2012 →→8K0 601 025 CG | |
| Aluminum wheel, PR number | CD6 |
| Dimension: | 7.5 J x 16 H2 |
| Offset in mm: | 45 |
| Wheel load in kg: | 650 |
| 8K0 601 025 BA>> 12/10/2012 →→8K0 601 025 CL | |
| Aluminum wheel, PR number | CD6 |
| Dimension: | 7.5 J x 16 H2 |
| Offset in mm: | 45 |
| Wheel load in kg: | 650 |
