Metal Valve Body, Removing And Installing
Special Tools And Workshop Equipment Required
- Torque Wrench 1410:VAG1410 and Torque Wrench 1331 5-50 Nm :VAG1331 11 mm.
-- Place the metal valve with rubber seal through rim from inside.
-- Attach chamfered washer and union nut from outside and tighten by hand.
-- Tighten the union nut.
NOTE:
Be careful not to scratch off the glued- on wheel trim on these rims.
The surface of the wheel trim is very sensitive.
The rim will have be replaced if the wheel trim is damaged.
The wheel trim cannot be replaced.

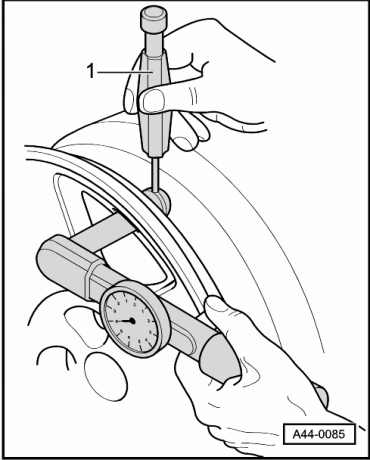

-- Secure against turning with counterhold -1- (for example, a 2 mm drill bit).
NOTE:
Be careful not to scratch off the glued- on wheel trim on these rims.
The surface of the wheel trim is very sensitive.
The rim will have be replaced if the wheel trim is damaged.
The wheel trim cannot be replaced.
