High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING: Removing

-- Remove the air intake grille. Refer to Front Bumper .

-- RS4: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

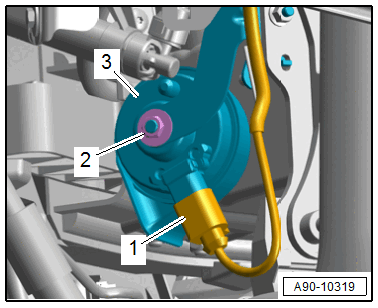

-- Disconnect the connector -1-.

GWWA90-10319Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -2- and remove the horn -3-.
