Wheel - 7 J X 17

NOTE:

The part number and illustration of the following wheels are examples. Refer to the "Parts Information" for assistance to order the correct wheels.

Pay attention when installing Audi original accessories-wheels to the notes in the "Parts Information".

Nm Wheel Bolts Hole Circle in mm Wheel Hub in mm
120 5 112 66.5

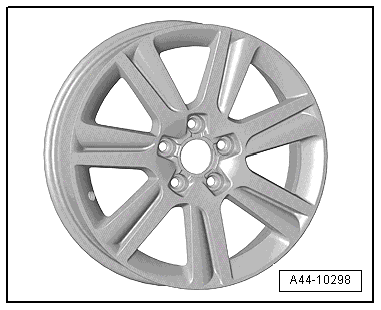

Fig 1: Winter Aluminum Rims 8K0 601 025 N & 8K0 601 025 BE -- Wheels
GWWA44-10298Courtesy of AUDI OF AMERICA, LLC
8K0 601 025 N
Winter aluminum wheel, PR number 7DS /2WL
Dimension: 7 J x 17 H2
Offset in mm: 46
Wheel load in kg: 650
8K0 601 025 BE
Winter aluminum wheel, PR number 2WL/2WN
Dimension: 7 J x 16 H2
Offset in mm: 46
Wheel load in kg: 650
