Selector Lever Handle, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

• Ignition switched off.

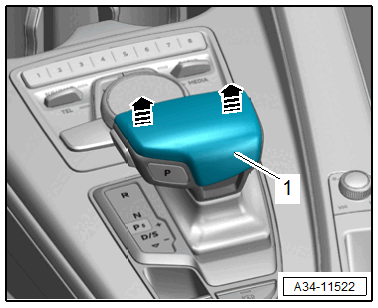

-- Remove the selector lever handle upper section -1- upward in direction of -arrows-.

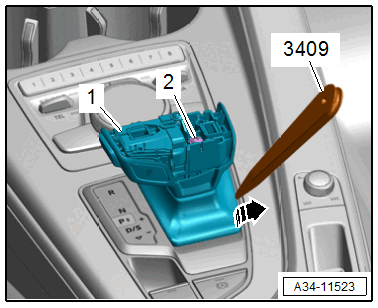

-- Carefully pry out the selector lever boot on the side using the Trim Removal Wedge: 3409  in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Pull the selector lever handle lower section -1- upward.
