Selector Lever Handle, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in the reverse order of removal while noting the following:

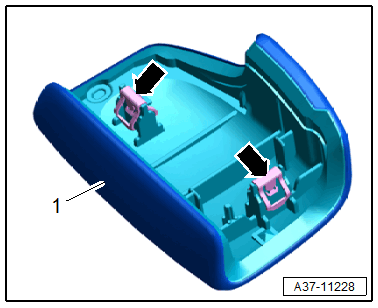

-- Check the clips -arrows- on the bottom of the selector lever handle upper section -1- are seated correctly, and if necessary press them in farther.

-- Attach the selector lever handle upper section to the selector lever handle lower section.

-- Clip in the selector lever boot on the Selector Lever Transmission Range Display -Y5-.

-- Check the selector mechanism. Refer to SHIFT MECHANISM, CHECKING .
