Selector Lever Boot On Selector Lever Handle, Disconnecting And Assembling

Separating

Courtesy of AUDI OF AMERICA, LLC

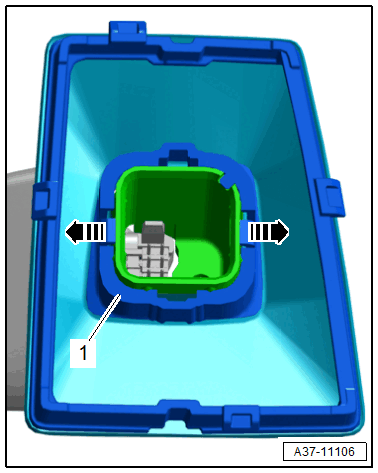

-- Remove the selector lever handle. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

-- Release the catches in direction of -arrows- and remove the selector lever boot -1- from the selector lever handle.

Assembling

Courtesy of AUDI OF AMERICA, LLC

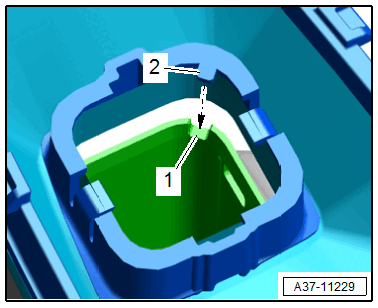

-- Push the selector lever boot until it engages audibly on the selector lever handle.

• The tab -2- on the selector lever boot must engage in the opening -1- in the selector lever handle in direction of -arrow-.

-- Install the selector lever handle. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
