Overview - Solenoid Valves And Pressure Regulating Valves In Valve Body

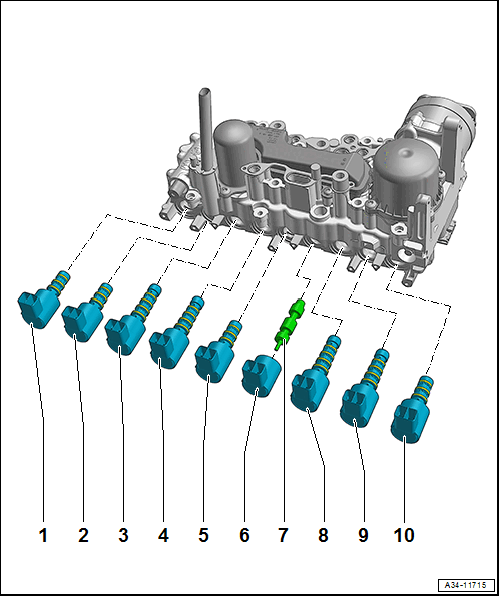

Fig 1: Solenoid Valves And Pressure Regulating Valves In Valve Body Components Location

Courtesy of AUDI OF AMERICA, LLC

1. Automatic Transmission Pressure Regulating Valve 1 -N215-
   • Clutch Pressure Valve 1
2. Automatic Transmission Pressure Regulating Valve 2 -N216-
   • Clutch Pressure Valve 2
3. Solenoid Valve 2 -N89-
   • Gear Actuator 2-R
4. Solenoid Valve 1 -N88-
   • Gear Actuator 1-3
5. Solenoid Valve 6 -N93-
   • Clutch Safety Valve
6. Solenoid Valve 5 -N92-
   • For clutch cooling valve
7. Clutch Cooling Valve
   • Do not remove the clutch cooling valve it remains in the valve body!
   • Due to the exact positioning of components, reinstallation is not possible, since the valve body would be damaged.
8. Solenoid Valve 3 -N90-
   • Gear Actuator 5-7
9. Solenoid Valve 4 -N91-
   • Gear Actuator 4-6
10. Automatic Transmission Pressure Regulating Valve 3 -N217-
    • Gear actuator module valve

Tip:

• Check before the repair, if the necessary replacement parts are available. Refer to the Parts Information.
