Solenoid Valves And Pressure Regulating Valves In Valve Body, Removing And Installing: Installing: Notes
-- Coat the valve surface with ATF and push in the valves all the way.

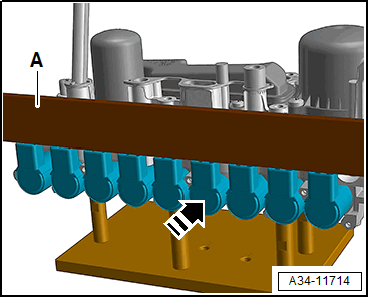

-- Hold the Solenoid Valve 5 -N92- -arrow-.
-- Using the Precision Straight Edge (2 pc.): T40100 align the connection evenly as shown.

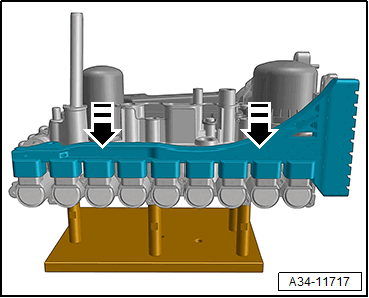

-- Connect the contact element evenly.

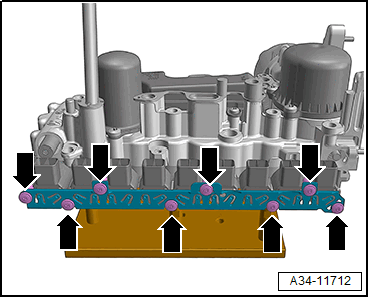

-- Install the mounting rail and tighten the bolts -arrows- to the tightening specification.

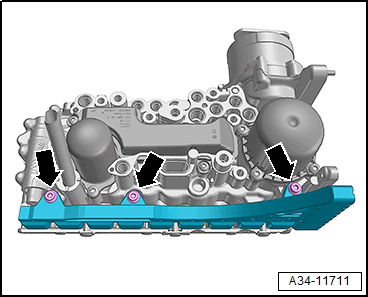

-- Tighten the bolts -arrows- to the tightening specification.
-- Install the Transmission Control Module -J217-. Refer to Transmission Control Module -J217-, REMOVING AND INSTALLING .
-- Install the Mechatronic. Refer to MECHATRONIC, REMOVING AND INSTALLING .
- After replacing the Solenoid Valves -- the function "Calibrating valves" must be performed using the Vehicle Diagnostic Tester.
