Output Shaft Roller Bearing, Replacing, Vehicles without Self-Locking Center Differential

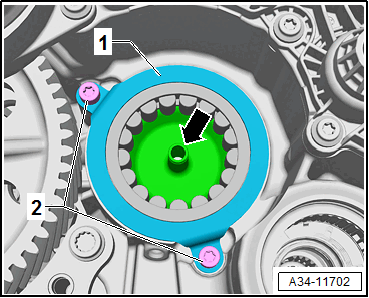

-- Remove the bolts -2-.
-- Remove the bearing shell -1-.
-- Break off the tab -arrow- of the oil guide shell using pliers.
- It is necessary to replace the oil guide shell!
Roller Sleeve for the Output Shaft 1, Extend, Vehicles without Self-Locking Center Differential

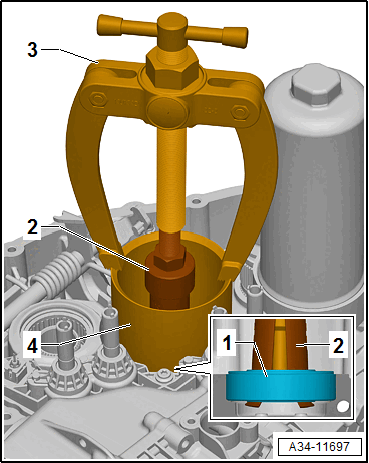

Fig 1: Roller Sleeve for the Output Shaft -1-, Extend, Vehicles without Self-Locking Center Differential
Courtesy of AUDI OF AMERICA, LLC2 - Internal Puller: VAS 251 615
3 - Counter Support: VAS 251 623
4 - Bearing Installer - Wheel Bearing: 3144
Roller Sleeve for the Output Shaft 1, Driving In, Vehicles without Self-Locking Center Differential

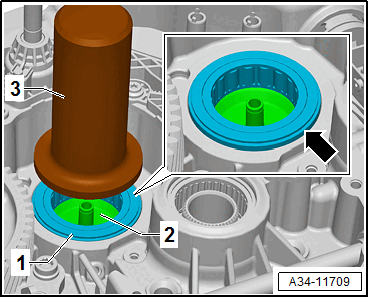

Fig 2: Roller Sleeve for the Output Shaft -1-, Driving In, Vehicles without Self-Locking Center Differential
Courtesy of AUDI OF AMERICA, LLC3 - Seal Installer - Gearbox: 3295
Installation position of the roller sleeve: the surrounding groove -arrow- points to the Seal Installer: 3295 .
- Beforehand, insert a new oil guide shell -2-.
-- Lay the bearing shell -1- onto the roller sleeve.
-- Tighten the bolts -2- to the tightening specification.
