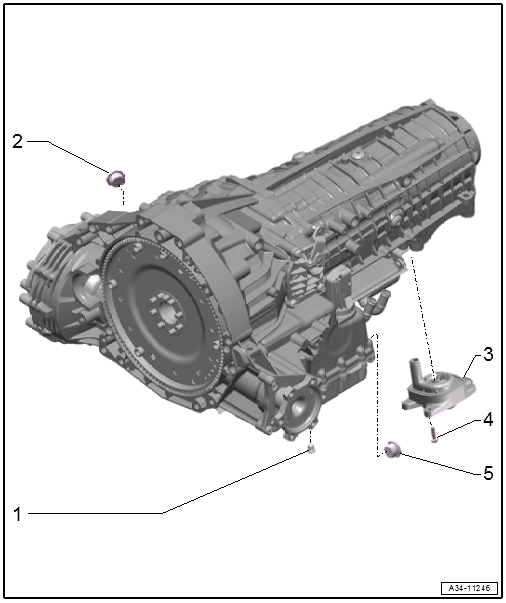

Overview - Transmission Fluid Circuit
- Plug
- For the ATF check and fill hole
- Replace after removing
- 8 Nm +30°
- Plug
- For the transmission fluid inspection and fill hole
- Replace after removing
- 35 Nm
- Transmission Fluid Pump (MTF Pump)
- With seal welded on
- Must be removed to drain the transmission fluid (MTF)
- Replace the transmission fluid pump if the seal is damaged.
- Removing and Installing. Refer to TRANSMISSION FLUID PUMP, REMOVING AND INSTALLING .
- Bolt
- Replace after removing
- 3 Nm +90°
- Drain Plug
- for the ATF
- Replace after removing
- 35 Nm
