Overview - Parking Lock

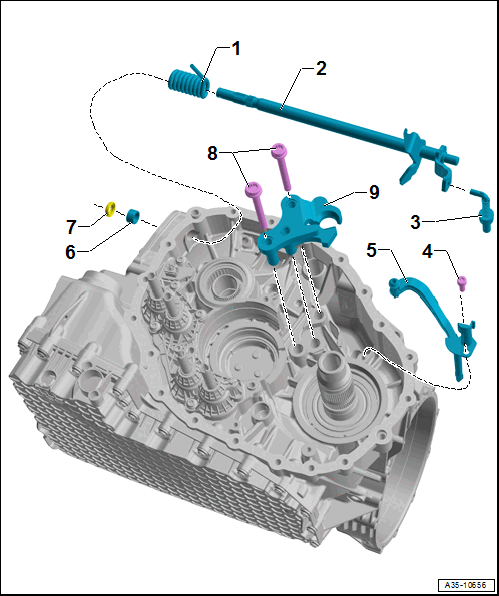

Fig 1: Parking Lock Exploded View

Courtesy of AUDI OF AMERICA, LLC

Spring
Parking Lock Shaft
- Removing and Installing. Refer to Shaft for the parking lock, removing .
Rest Linkage
Bolt
- 5 Nm + 30°
Oil line
- For the final drive
- Removing and Installing. Refer to PARKING LOCK, REMOVING AND INSTALLING .
Sleeve
- Removing and Installing. Refer to Shaft for the parking lock, removing .
Seal
- For the parking lock shaft
- Removing and Installing. Refer to Shaft for the parking lock, removing .
Bolt
- Quantity: 2
- 20 Nm +90°
Parking Lock
- Removing and Installing. Refer to PARKING LOCK, REMOVING AND INSTALLING .
