Final Drive Code, 0DG
The 0DG rear final drive is allocated to the following transmissions:
- 8-Speed Automatic Transmission 0D6 AWD
Rear final drive allocation
- Refer to TRANSMISSION/ENGINE ALLOCATION
Location on Rear Final Drive
- -Arrow A- barcode sticker with part number, code, daily production number and production date
- -Arrow B- codes, serial number and production date

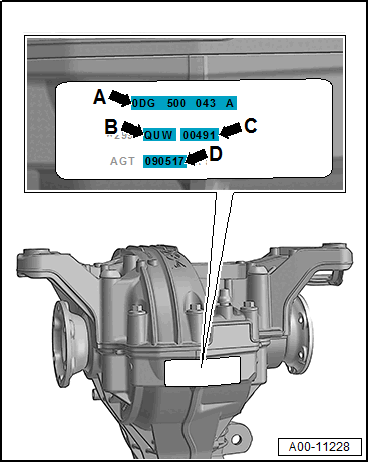

Example of dates on the barcode sticker.
- -Arrow A- final drive >>0DG<< with part number (example: 0DG 500 043 A)
- -Arrow B- code letters -QUW-
- -Arrow C- running daily production number -00491-
- -Arrow D- rear final drive build date
| Example: | 09 | 05 | 17 |
|---|---|---|---|
| I | I | I | |
| Day | Month | Production year -2017- |
Additional data can be ignored.

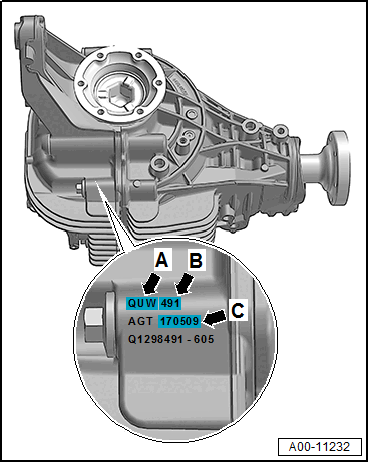

Example of production date on the rear final drive
- -Arrow A- code -QUW-
- -Arrow B- running daily production number -491-
- -Arrow C- production date
| Example: | 17 | 05 | 09 |
|---|---|---|---|
| I | I | I | |
| Production year -2017- | Month | Day |
Additional data can be ignored.
- When installing a new rear final drive, not only the final drive code but also the PR number and the vehicle engine code must be verified in the Parts Information. This is the only way to assure the correct allocation.
