FINAL DRIVE IDENTIFICATION, 0D3 AND 0BX "quattro sport"
The 0D3 "quattro sport" rear final drive is assigned to the following transmissions:
- 8-Speed Automatic Transmission 0D5 AWD
The 0BX "quattro sport" rear final drive is assigned to the following transmissions:
- 8-Speed Automatic Transmission 0D6 AWD
Rear final drive allocation
- Refer to TRANSMISSION/ENGINE ALLOCATION

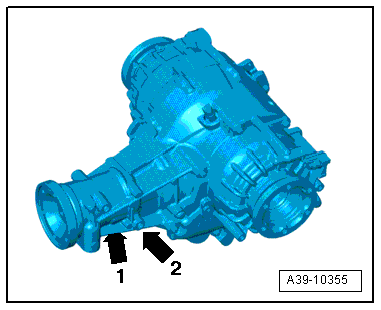

Location on Rear Final Drive
Clutch classification -arrow 1-.
Code and production date -arrow 2-
- The identifying feature of the 0D3 and 0BX "quattro sport" rear final drive is the hydraulic control unit with the side chambers.
| Example: | 16 | 03 | 10 |
|---|---|---|---|
| I | I | I | |
| Production Year | Month | Day |

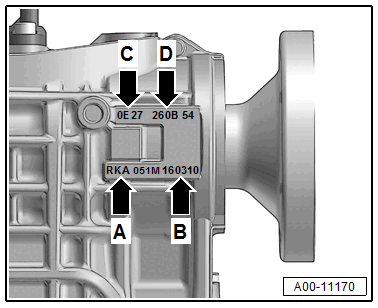

- -arrow C- Classification (classification of the clutch friction values) for the left clutch. Example: -0E27-
- -arrow D- Classification (classification of the clutch friction values) for the right clutch. Example: -260B-
Additional data can be ignored.
- When the rear final drive is replaced, not only the final drive code but also the PR number and the vehicle engine code must be verified in the Parts Information. This is the only way to assure the correct allocation.
