ELECTRICAL COMPONENTS, REAR FINAL DRIVE, 0D3 AND 0BX "quattro sport"

Courtesy of AUDI OF AMERICA, LLC

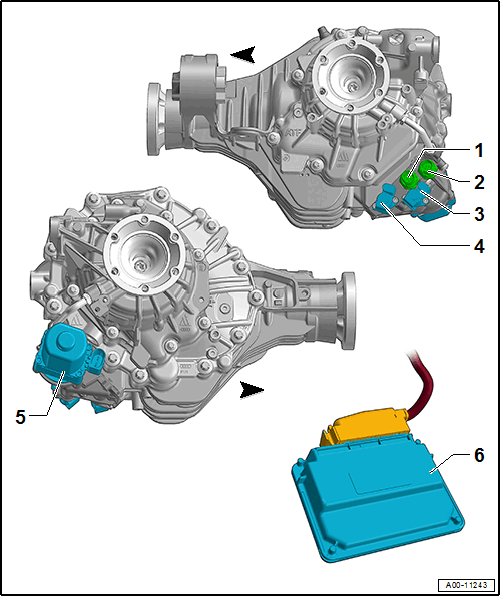

1. Oil Pressure/Temperature Sensor 2 -G640-
2. Oil Pressure/Temperature Sensor -G437-
3. All-Wheel Drive Clutch Valve 2 -N446-
4. All-Wheel Drive Clutch Valve -N445-
5. All-Wheel Drive Pump -V415-
6. Differential Lock Control Module -J187-
   • Component Location. Refer to COMPONENT LOCATION OVERVIEW - TRANSMISSION CONTROL .
   • Additional work after replacing the control module. Refer to ADDITIONAL WORK AFTER REPLACING Differential Lock Control Module -J187- .
   • Important signals from engine control module and ABS Control Module -J104- are transmitted via the data bus to the All-Wheel Drive Control Module --.
