Overview - Flywheel And Dual Clutch

TFSI e (0DK) Clutch

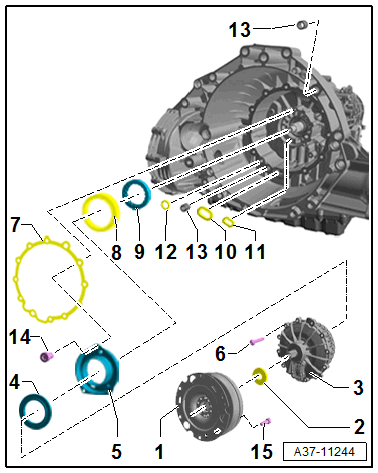

Fig 1: Exploded View Of Flywheel and Dual Clutch Seals And Bearings

Courtesy of AUDI OF AMERICA, LLC

1. Flywheel
   • There are different versions depending on the model. Refer to Electronic Parts Information (ETKA) for the allocation.
   • Removing and Installing. Refer to FLYWHEEL, REMOVING AND INSTALLING .
2. Shaft Seal
   • For the input shaft
   • Replacing. Refer to INPUT SHAFT SEAL, REPLACING, CLUTCH COVER .
3. Dual Clutch
   • There are different versions depending on the model. Refer to Electronic Parts Information (ETKA) for the allocation.
   • Removing and Installing. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .
   • Overview Dual Clutch. Refer to OVERVIEW - DUAL CLUTCH .
4. Engaging Bearing
   • Pay attention to the installation position
   • Can only be replaced together with the dual clutch
   • Removing and Installing. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .
5. Slave Cylinder
   • Can only be replaced together with the dual clutch
   • Removing and Installing. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .
6. Bolt
   • Replace after removing
   • Tighten diagonally to the tightening specification
   • Tightening specification 12 Nm + 90°
7. Seal
   • Replace after removing
8. Double Shaft Seal
   • Replace after removing
   • Removing and Installing. Refer to INPUT SHAFT SEAL, REPLACING, CLUTCH HOUSING .
9. Guide Sleeve
   • Pay attention to the installation position
   • Removing and Installing. Refer to INPUT SHAFT SEAL, REPLACING, CLUTCH HOUSING .
10. Seal
    • Replace after removing
11. Seal
    • Replace after removing
12. Seal
    • Replace after removing
13. Alignment Sleeve
14. Bolt
    • Not present depending on the version
    • Tighten evenly
    • Tightening specification 5 Nm + 30°
15. Bolt
    • M10 X 15.5
    • Tightening specification 60 Nm
