Input Shaft Seal, Replacing, Clutch Housing

Special tools and workshop equipment required

• Puller - Crankshaft/Power Steering Seal: T20143
  Fig 1: Crankshaft / Power Steering Seal Puller

  Courtesy of AUDI OF AMERICA, LLC

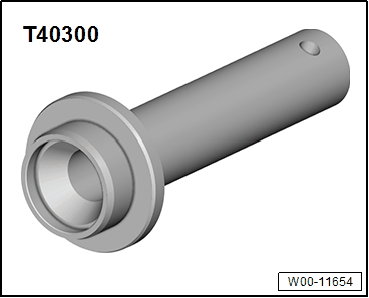

• Thrust Piece: T40300

  Courtesy of AUDI OF AMERICA, LLC

Procedure

• Clutch, engaging bearing and slave cylinder removed. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .

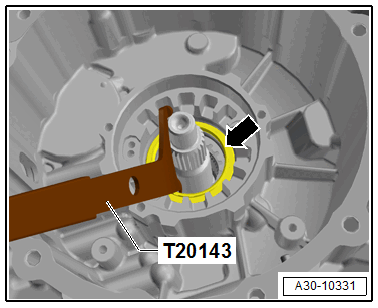

-- With the Puller - Crankshaft/Power Steering Seal: T20143  carefully remove the seal -arrow- from the housing.

Courtesy of AUDI OF AMERICA, LLC

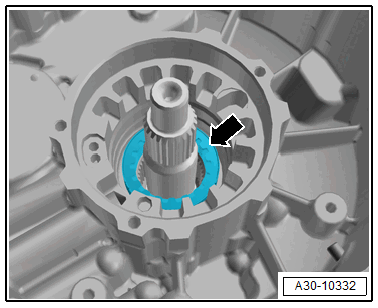

-- A waved washer -arrow- is located behind the seal, it does not need to be replaced.

Courtesy of AUDI OF AMERICA, LLC

• Pay attention to the installation position.

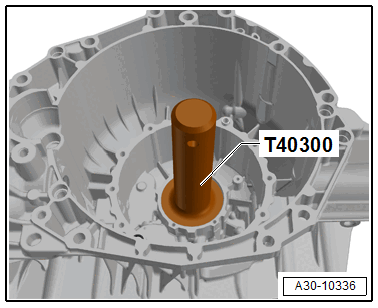

-- Drive the new seal in all the way using the Thrust Piece: T40300  .

Courtesy of AUDI OF AMERICA, LLC

-- Dual Clutch, Installing. Refer to DUAL CLUTCH, REMOVING AND INSTALLING .
