Overview - Transmission Mount for Automatic Transmission, Audi A8

WARNING: This page is about a different variant/trim than selected.

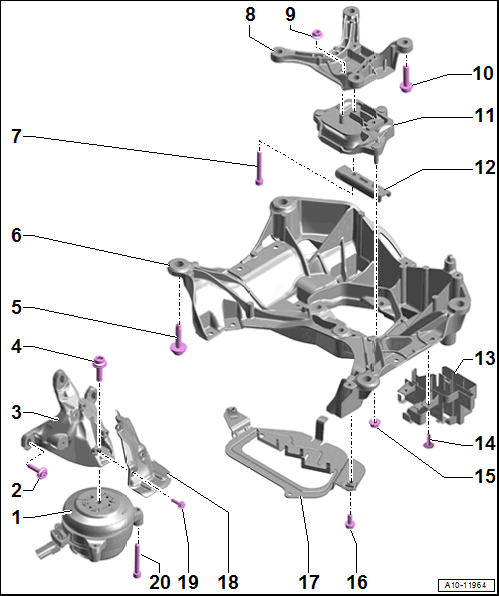

Fig 1: Exploded View Of Transmission Mount for Automatic Transmission, Audi A8

Courtesy of AUDI OF AMERICA, LLC

Side Transmission Mount
- With
  - Transmission Mount Valve 1 -N262- right
  - Transmission Mount Valve 2 -N263- left
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- Tightening specifications. Refer to the appropriate Service Information .
Side Transmission Support
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- Tightening specifications. Refer to the appropriate Service Information .
Bolt
- Tightening specifications. Refer to the appropriate Service Information .
Tunnel Crossmember
- Removing and Installing. Refer to the appropriate Service Information .
Bolt
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specifications. Refer to the appropriate Service Information .
Rear Transmission Support
- Removing and Installing. Refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING, VERSION 1 .
Nut
- Only remove when the transmission mount must be separated from the transmission support
- Tightening specifications. Refer to the appropriate Service Information .
Bolt
- Tightening specifications. Refer to the appropriate Service Information .
Rear Transmission Mount
- Removing and Installing. Refer to REAR TRANSMISSION MOUNT, REMOVING AND INSTALLING, VERSION 1 .
Stop
- For the transmission mount
Not Installed
Not Installed
Nut
- Tightening specifications. Refer to the appropriate Service Information .
Bolt
- 9 Nm
Bracket
- For the connectors
Heat Shield
Bolt
- 9 Nm
Bolt
- 20 Nm
