Cam Adjustment Actuator, Removing And Installing: Notes

Removing

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

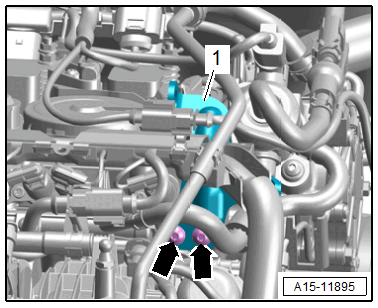

-- Cam Adjustment Actuator 8 -F373- : remove the bolts -arrows- and push the engine lifting eye -1- to the side.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and the cam adjustment actuator.
