Oil Return Connection, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the transmission and the drive motor. Refer to [For transmission(s) 0CJA] Transmission, Removing and Installing .

-- Catch escaping oil with a cloth.

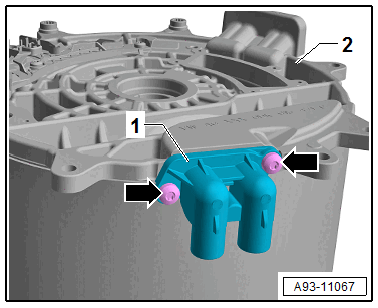

-- Remove the bolt -arrows- and the oil return connection -1-.

GWWA93-11067Courtesy of AUDI OF AMERICA, LLC
