Input Shaft Seal, Replacing: Installing

WARNING: This page is about a different variant/trim than selected.

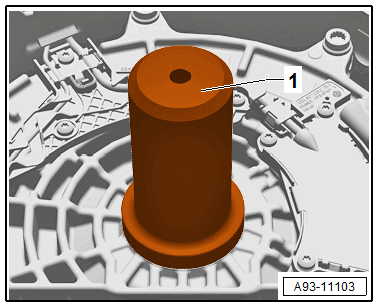

GWWA93-11103Courtesy of AUDI OF AMERICA, LLC

-- Drive in the new seal all the way in the housing using the Seal Installer - Intermediate Flange: 3404  .
