E-Tron Charging System

WARNING: This page is about a different variant/trim than selected.

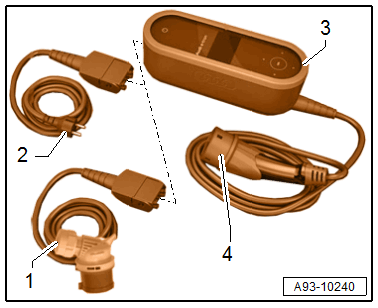

The "compact" e-tron charging system consists of:

GWWA93-10240Courtesy of AUDI OF AMERICA, LLC

-1- = Charging cable with industrial connector Charging Cable for High-Voltage Charging System, Power Connection -P88-

-2- = Charging cable with household connector Charging Cable for High-Voltage Charging System, Power Connection -P88-

-3- = High-Voltage Charging System Control Head -E943-

-4- = Charging cable with vehicle connector
