Overview - Transmission Housing

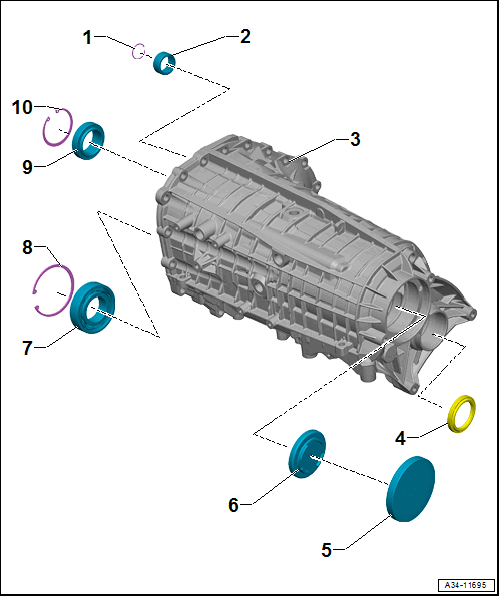

Fig 1: Exploded View Of Transmission Housing
GWWA34-11695Courtesy of AUDI OF AMERICA, LLC
  1. Circlip
  2. Pinion Roller Sleeve
    • Bearing "I"
    • Removing. Refer to Figure.
    • Installing. Refer to Figure.
  3. Transmission Cover
  4. Seal
  5. Cap
    • Replace after removing
    • Removing. Refer to Figure.
    • Installing. Refer to Figure.
  6. Fluid Catch Tray
    • Replace after removing
  7. Input Shaft Ball Bearing
    • Bearing "E"
    • Installation position: the surrounding groove points to the transmission cover.
    • Removing. Refer to Figure.
    • Installing. Refer to Figure.
  8. Circlip
    • Installation position. Refer to Figure
  9. Roller Sleeve for the Output Shaft
    • Bearing "F"

      FWD Vehicles

    • Replace after removing
    • Removing. Refer to Figure.
    • Installing. Refer to Figure.

      AWD Vehicles

    • Removing. Refer to Figure.
    • Installing. Refer to Figure.
  10. Circlip
    • Different versions
    • Refer to the Parts Information for the allocation.
