2. If there is no ribbed belt installed (torn, for example):

Courtesy of AUDI OF AMERICA, LLC

-- Position the ribbed belt tensioner -3- as shown and if necessary for this turn the ribbed belt tensioner by hand -arrows B-.

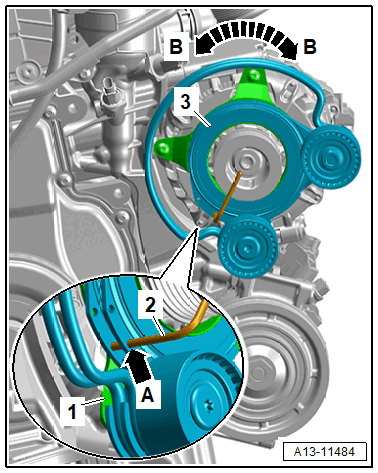

-- Insert the Locking Pin: T10060A  -2- in the lower hole -arrow A- and turn the tensioner farther counter-clockwise -arrow B- until the drift contact the lower mounting tab -1- from the tensioner.

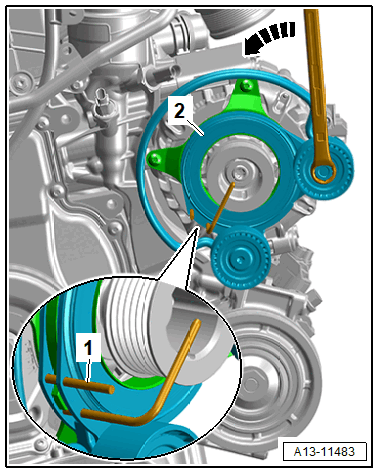

-- Turn the tensioner in the direction of -arrow- and lock the tensioner as shown using a commercially available steel pin (4 mm diameter) -1-. At the same time pay attention to that the >>tab<< of the tensioner is located between the Locking Pin: T10060A  and the steel pin -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Locking Pin: T10060A  .

Continuation for All:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the tensioner -1-.

Installing

Install in the reverse order of removal while noting the following:

• Different versions of the ribbed belt tensioners.

Versions with Mounting Tab with Flattened Contour:

Courtesy of AUDI OF AMERICA, LLC

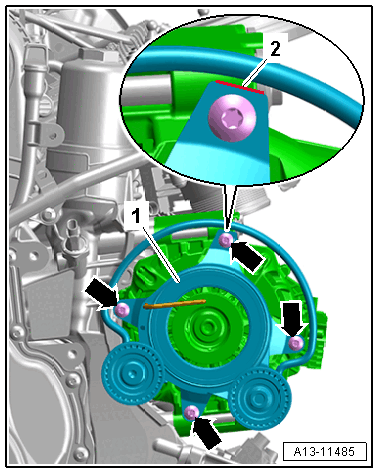

-- Position the ribbed belt tensioner >>1<< as shown at the same time pay attention that the mounting tab is aligned with the flattened contour -2- at approximately -12 o'clock-.

Versions without Mounting Tab with Flattened Contour:

Courtesy of AUDI OF AMERICA, LLC

-- Position the ribbed belt tensioner -1- as shown.

Continuation for All:

-- Install the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

Tightening Specifications

• Refer to OVERVIEW - CYLINDER BLOCK, BELT PULLEY SIDE
