Vibration Damper, Removing And Installing, Version 2, Vehicle With Starter Generator: Notes

Vibration Damper, Version 2. Refer to Figure.

Special tools and workshop equipment required

• Wrench - 21mm: T40263
  Fig 1: Identifying Wrench - 21mm

  Courtesy of AUDI OF AMERICA, LLC
• Adapter: T40314
  Fig 2: Adapter T40314

  Courtesy of AUDI OF AMERICA, LLC
• Counterhold: T40379
  Fig 3: Counterhold T40379

  Courtesy of AUDI OF AMERICA, LLC
• Vibration Damper Assembly Tool: T10531
  Fig 4: Assembly Tool Set T10531

  Courtesy of AUDI OF AMERICA, LLC
• Vibration Damper Assembly: T10531/5-/6
  Fig 5: Vibration Damper Assembly

  Courtesy of AUDI OF AMERICA, LLC

• The vibration damper bolt -A- connects the vibration damper -1-, the timing chain sprocket -2- and the crankshaft -3- with each other. Before removing the bolt, the chain sprocket must be secured to the crankshaft as described in the following.
  Fig 6: Locating Vibration Damper Bolt

  Courtesy of AUDI OF AMERICA, LLC

Tool Preparation

Courtesy of AUDI OF AMERICA, LLC

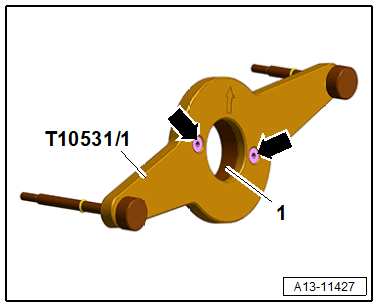

-- Remove the bolts -arrows- and remove the adapter -1- from the Vibration Damper Assembly Tool - Counterhold Tool: T10531/1  .
