Piston And Cylinder Bore, Checking

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Outside Micrometer - 75-100mm: VAS6071

Fig 1: Outside Micrometer - 75-100mm
Courtesy of AUDI OF AMERICA, LLC
Internal Dial Gauge: VAS6078 , not illustrated

Pistons, Checking

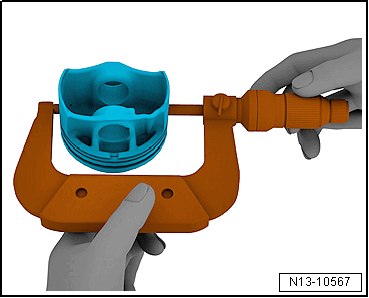

Fig 2: Checking Piston Bore

Courtesy of AUDI OF AMERICA, LLC

-- Measure approximately 15 mm from the lower edge at a 90° angle to the piston pin axis using Outside Micrometer - 75-100mm: VAS6071 .

Piston Diameter in mm
Specified size	82.420 ¹⁾
¹⁾ Measurement without coating (thickness = 0.04 mm). The coating wears off.

Cylinder Bore, Checking

Fig 3: Cylinder Bore, Checking

Courtesy of AUDI OF AMERICA, LLC

The cylinder bore must not be measured when the cylinder block is mounted on the engine and transmission holder because the measurements may be incorrect.

CAUTION:

Risk of damaging the cylinder bore surface through incorrect handling.

- Never handle the cylinder bore with service equipment (drilling, honing, grinding).

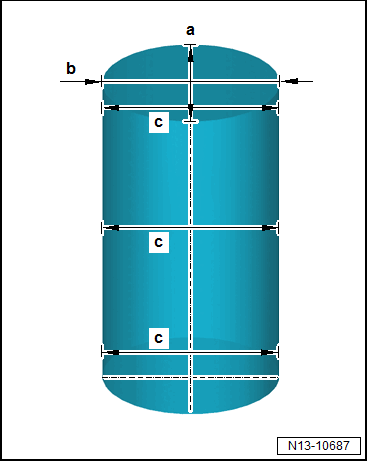

-- Measure at three locations -c-, in longitudinal direction -a- and cross direction -b- using the Internal Dial Gauge: VAS6078 .

Cylinder Bore Diameter in mm
Specified size	82.51 ¹⁾
¹⁾ measure 50 mm inside the cylinder bore.

Piston Ring Gap, Checking

Fig 4: Checking Piston Ring Gap

Courtesy of AUDI OF AMERICA, LLC

-- Push the piston ring squarely from above down to approximately 15 mm from the edge of the cylinder. To push in use a piston without rings.
