Air Duct Trim, Removing And Installing, RS 4 From Product Improvement: Removing
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Left: remove the air intake grille trim. Refer to SIDE AIR INTAKE GRILLE TRIM, REMOVING AND INSTALLING .

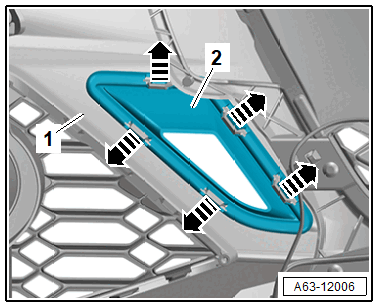

-- Release the retainers in direction of -arrows-.
-- Remove the trim -2- towards the rear from the bumper cover -1-.
