Large Reflector, Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Release the retainers -3 and 4-.

-- Pry out the reflector -2- from the bumper cover lower section -1-.

Small Reflector, Removing

Courtesy of AUDI OF AMERICA, LLC

• Large reflector removed.

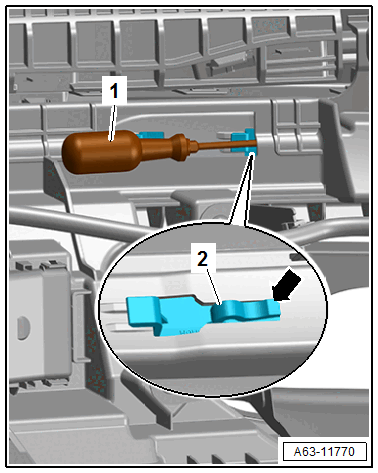

-- Position the screwdriver -1- as shown and release the locking tab -2- -arrow-.

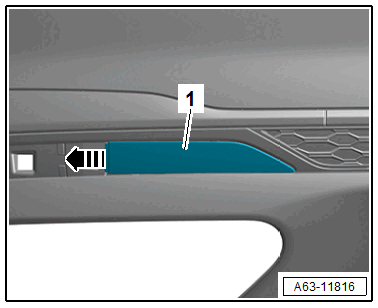

-- Push the small reflector -1- outward -arrow- and remove.

Courtesy of AUDI OF AMERICA, LLC
