Headlamp, Removing And Installing: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and Note The Following  :

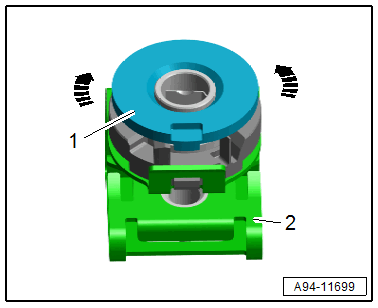

-- Check all of the adjusters -2- on the headlamp. To do so, the adjusting nut -1- must be gently screwed on -arrows-.

-- Screw the adjusting nuts all the way downward, but do not tighten.

-- Align the headlamp with the fender edge.

• The headlamp must be flush with the fender.

TIP:

Tightening the bolt automatically turns the adjusting nut on the adjuster against the headlamp housing mounting point and secures the housing.

-- Adjust the headlamp. Refer to HEADLAMP, ADJUSTING .
